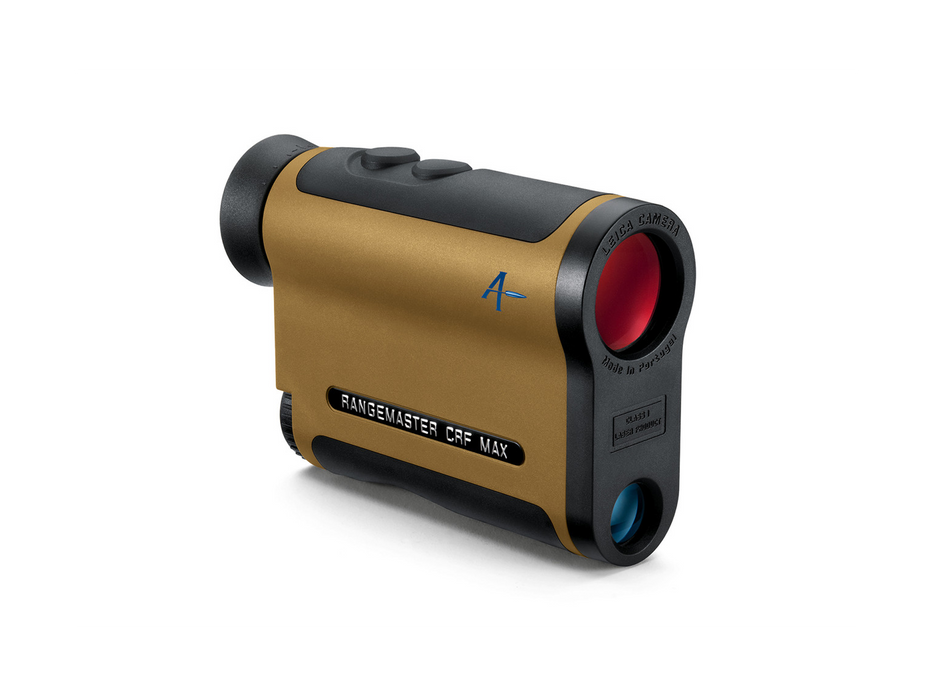

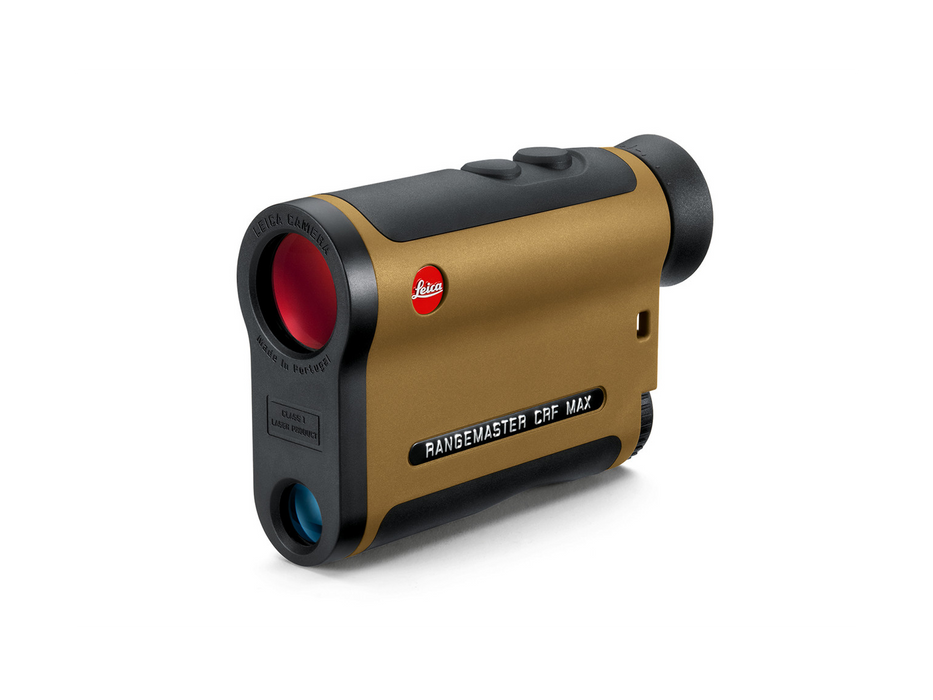

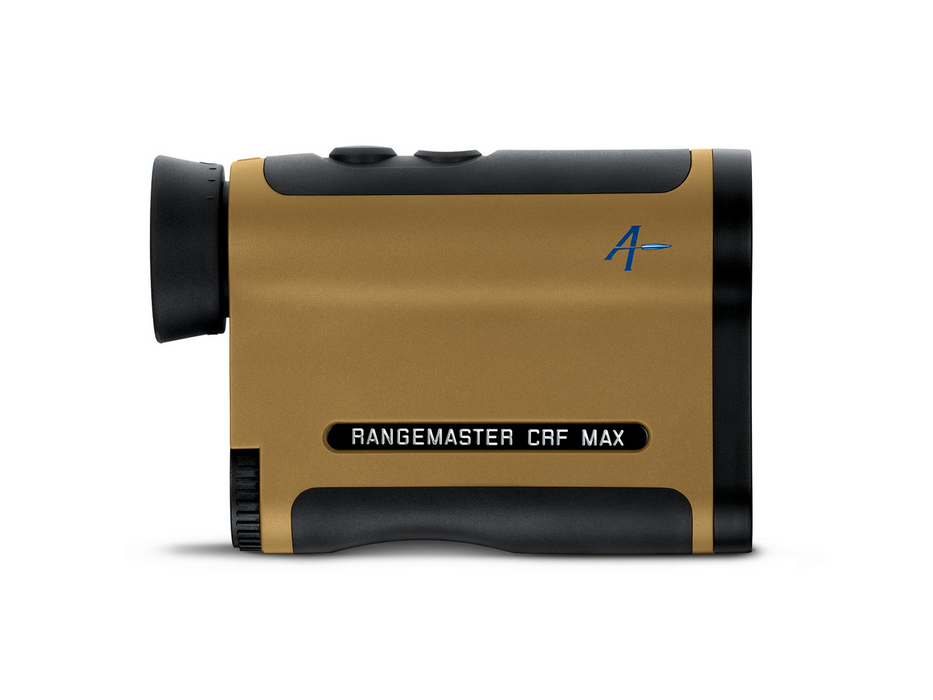

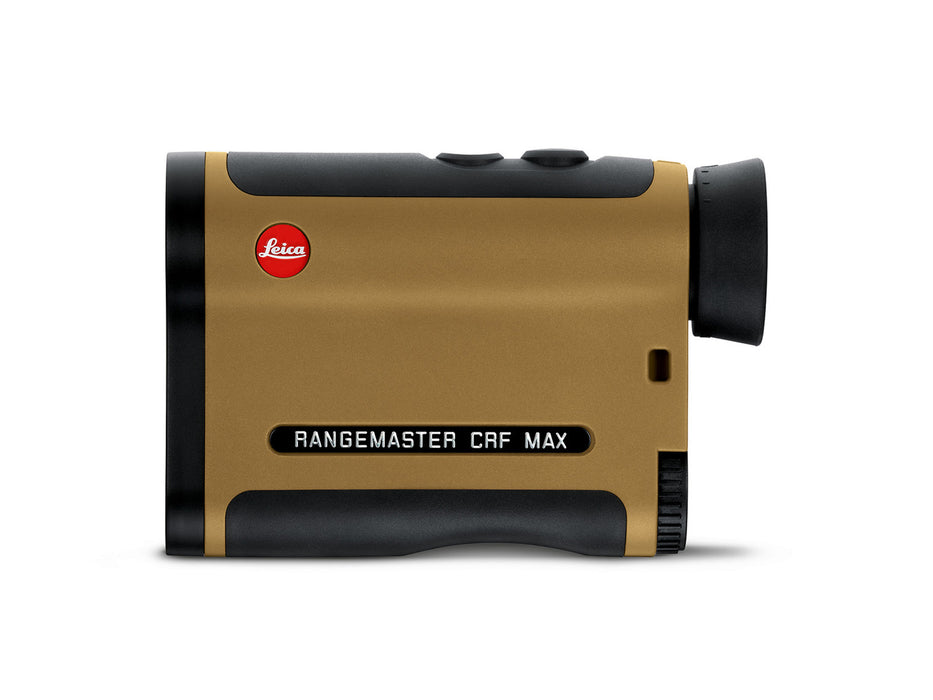

Leica Rangemaster CRF Max
The ultimate compact rangefinder with innovative technology.
For discerning hunters and precision shooters who demand maximum performance in a compact design, the Leica Rangemaster CRF MAX sets new standards. The most advanced technology and outstanding optical quality come packaged in a rugged, weatherproof housing for the toughest hunting conditions. An innovative Active Matrix MicroLED display offers unrivaled brightness and individual configuration options, while the integrated Applied Ballistics Elite® software including Shot Probability Analysis provides precise ballistic solutions in real time.
Three intelligent target modes enable reliable and precise rangefinding in a wide variety of situations – from small or close targets, to clearly visible objects, to targets that are partially obscured. High-quality optical components ensure a detailed, color-neutral and razor-sharp image. Thanks to Bluetooth® integration and extensive connectivity options in combination with the Leica Ballistics app, the CRF MAX is the ideal companion for modern, professional hunting and shooting.
The essentials:
- World’s brightest, individually configurable Active Matrix MicroLED display
- Integrated Applied Ballistics Elite® software with Shot Probability Analysis
- Three intelligent target modes (“First”, “Best”, “Last”) for reliable rangefinding
- Outstanding optical quality with 7x zoom for maximum detail recognition
- Lightning-Ffst and highly precise eye safe laser technology up to 3,700 yds.
- Bluetooth® integration and seamless connection to Garmin®, Kestrel®, and GPS apps
- Full connectivity to Leica Ballistics app
Designation |
Leica Rangemaster CRF MAX |
|---|---|
| Device type | Rangefinder |
| Order no. | 40 549 (flat dark earth) |
| Scope of delivery | Cordura case, neoprene carrying strap, battery |
| Magnification | 7 x |
| Front lens diameter | 24 mm |
| Exit pupil | 3.4 mm |
| Field of view at 1,000 yds/1,000 m | 345 ft / 115 m |
| Eye relief | 15 mm |
| Objective angle of view | 6.6° |
| Close distance | approx. 16 ft. / 10 m |
| Diopter compensation | ± 3.5 dpt |
Distance measurement |
|
| Range | 10 up to approx. 3,700 yds / 3,400 m |
| Equivalent horizontal range (EHR) | 10 up to approx. 3,700 yds / 3,400 m |
| Correction output with Applied Ballistics Elite® | max. 3,700 yds / 3,400 m (on-board) |
| Measuring accuracy | 0.5 yds at 10 - 219 yds / ± 0.5 m at 10 - 200 m 1.0 yds at 219 - 1,093 yds / ± 1.0 m at 200 - 1,000 m ± 0.15 % beyond 1,093 yds / ± 0.15 % beyond 1,000 m |
| Measuring time | max. 0.3 sec. (extended range mode 1,2 s) |
| Measuring modes | scan mode / single measurement |
| Target modes | First / Last / Best |
| Switchover meter/yards | yes |
| Ballistic function | yes |
| On-board wind correction | yes |
| Output "Equivalent horizontal range" (EHR) | yes |
| Output "Unit correction" for elevation and windage | yes |
| Output "Click correction" for elevation and windage | yes |
| Output "Holdover" for elevation and windage | yes |
| Output "Shot Probability Analysis" | yes |
| Applied Ballistics Elite® on-board | yes |
| Bluetooth® interface | yes |
| Connect to Leica ballistics app | yes |
| Use customized ballistic profiles | yes |
| BaseMap® | yes |
| Kestrel® / Garmin® connection | yes |
| GPS guide LPTTM (Leica ProTrack) | yes |
| Display | Active-matrix microLED Display |
| Eyepiece for eyeglass wearers | yes |
| Eyecup | Turn-down rubber eyecup |
| Prism system | Roof prisms with phase-correction coating P40 |
| Lens coating | High Durable Coating HDC®, AquaDura® coating |
| Laser | Eye-safe invisible laser according to EN and FDA class 1 |
| Laser beam divergence | 1.2 x 0.96 mrad |
| Baromatric pressure sensor | yes |
| Temperature sensor | yes |
| Temperature measurement | yes |
| Inclination sensor | yes |
| Compass | yes |
| Battery | 1 x 3 V / Lithium-type CR2 |
| Battery lifetime | approx. 1,700 measurements at 68°F / 20°C* |
| Watertightness | to a depth of 3.2 ft / 1 m |
| Housing | Glass fibre reinforced plastic |
| Dimensions (W x H x D) | 4.4 x 3.1 x 1.4 in / 113 x 78 x 35 mm |
| Weight | approx. 7.0 oz / 199 g (incl. battery) |
Accessories |
|
| Tripod adapter | 42 232 |
| Neoprene Cover, pitch black | 42 233 |
| Neoprene Cover, juicy orange | 42 235 |
